FORMING

Product
Hat-Section-Profile-Steel_看图王

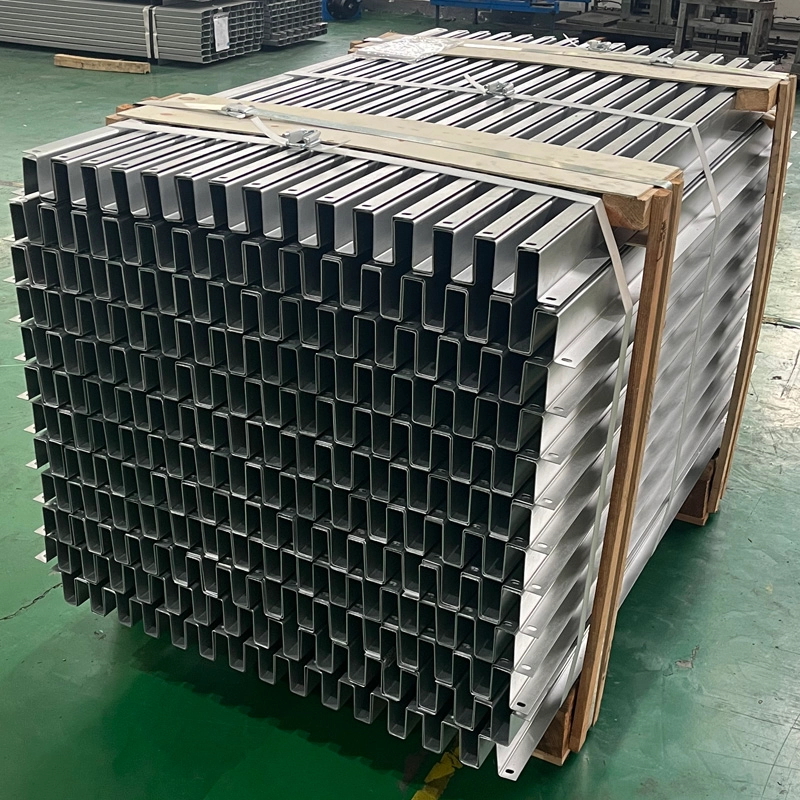

Hat Section Profile Steel
C-Section-Profile-Steel_看图王

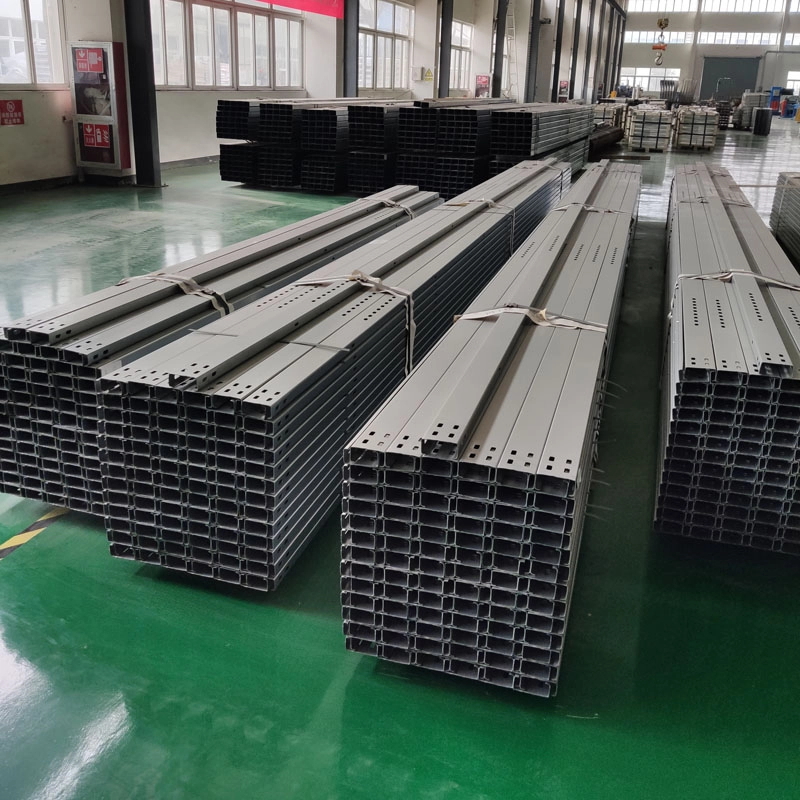

C Section Profile Steel
Z-section-profile-steel_看图王

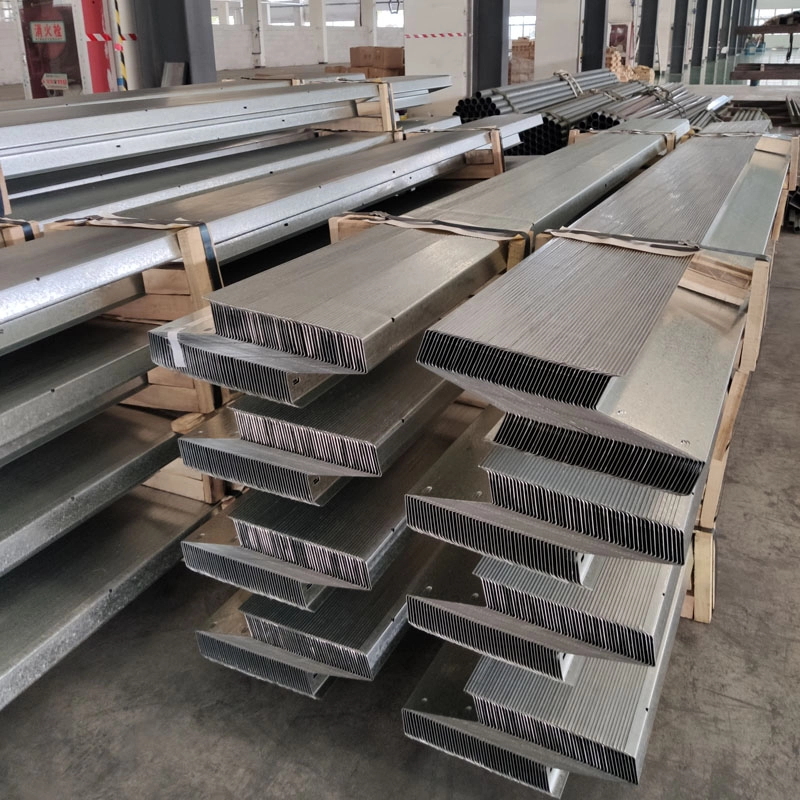

Z Section Profile Steel
Fastener

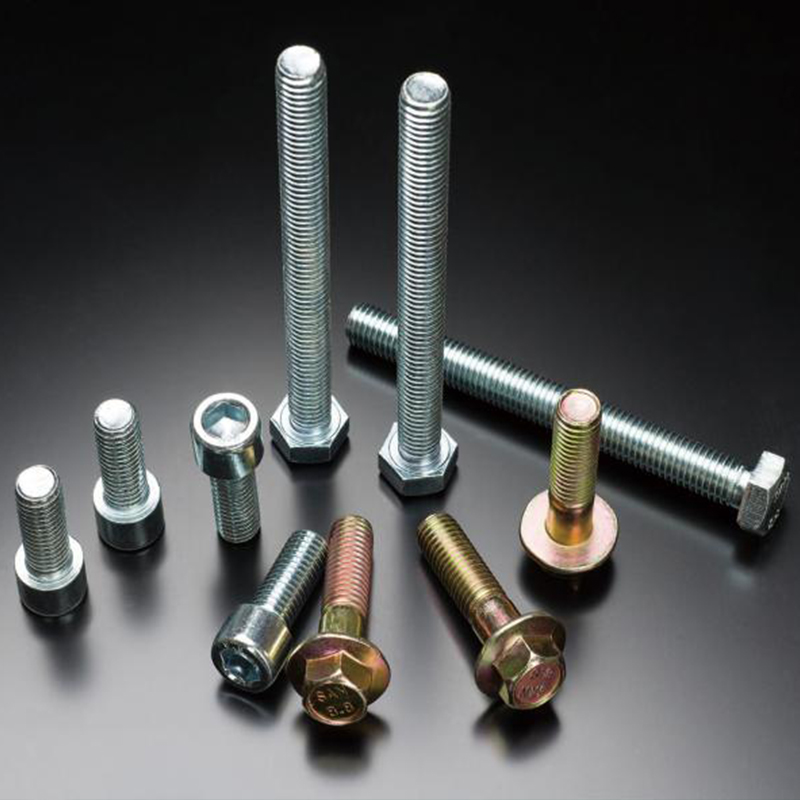

Fastener

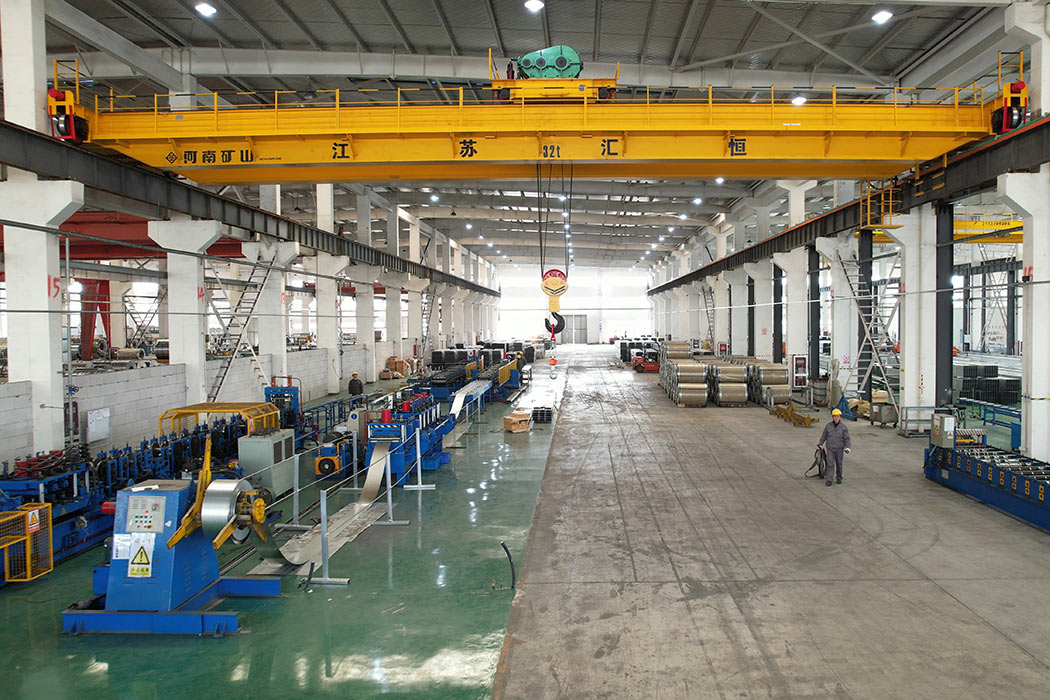

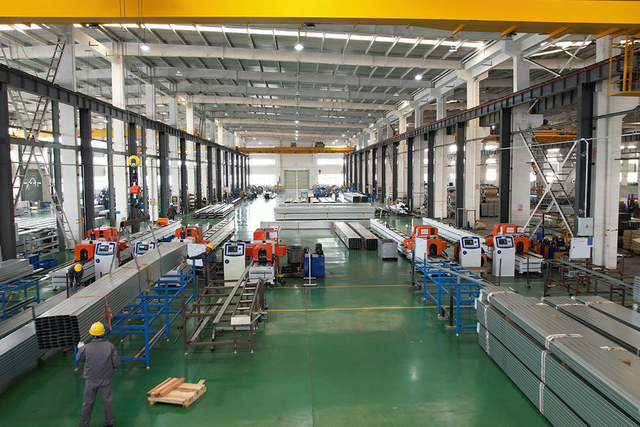

Equipment

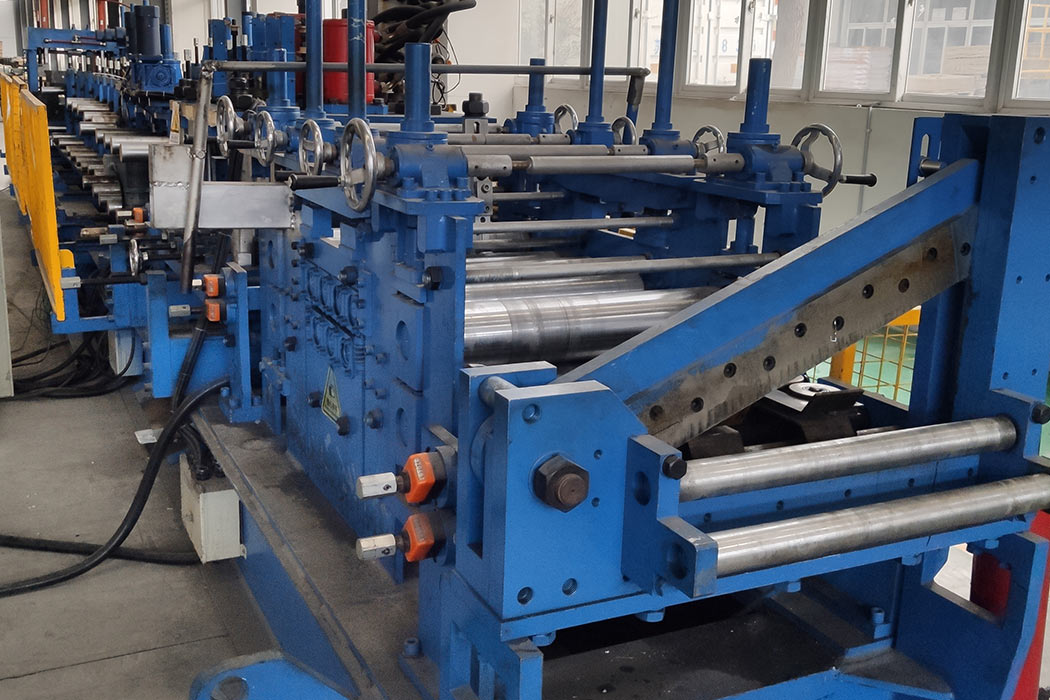

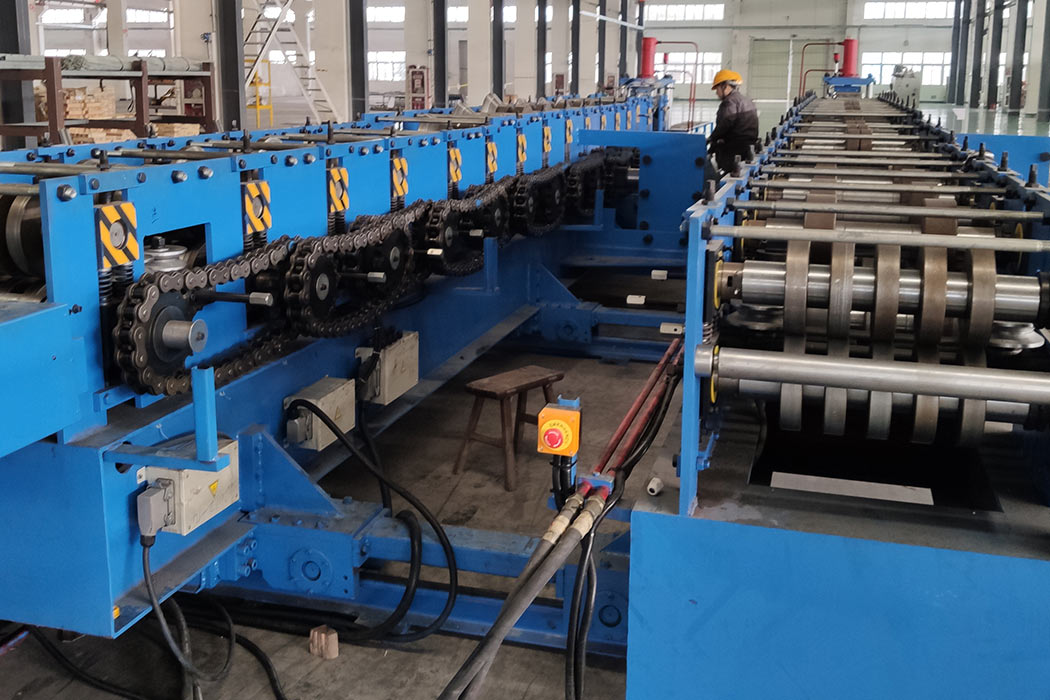

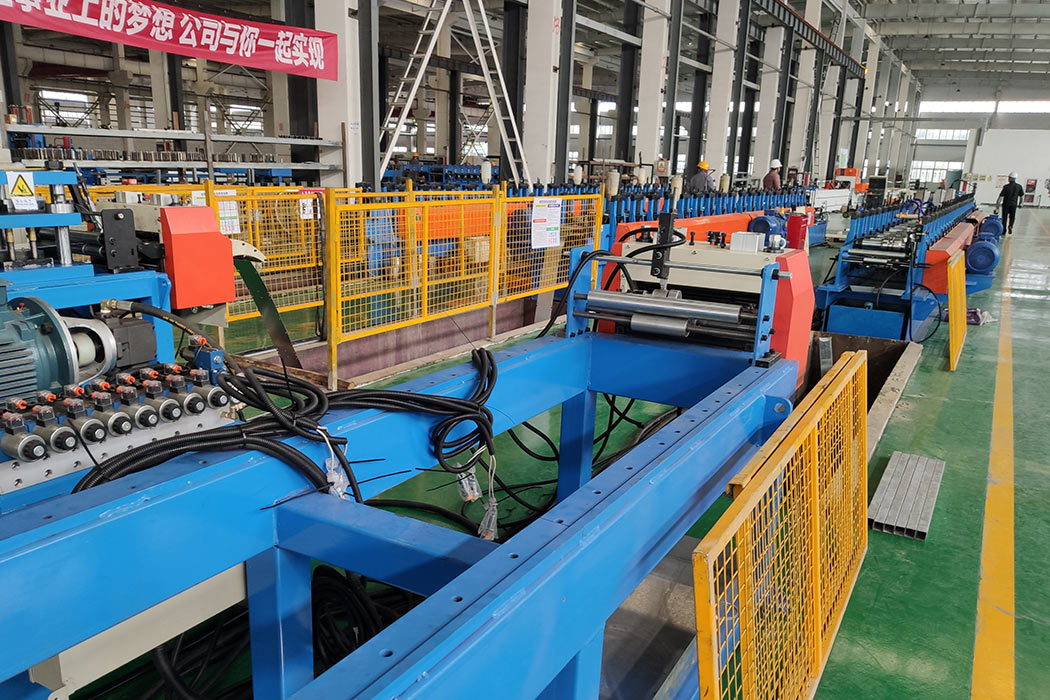

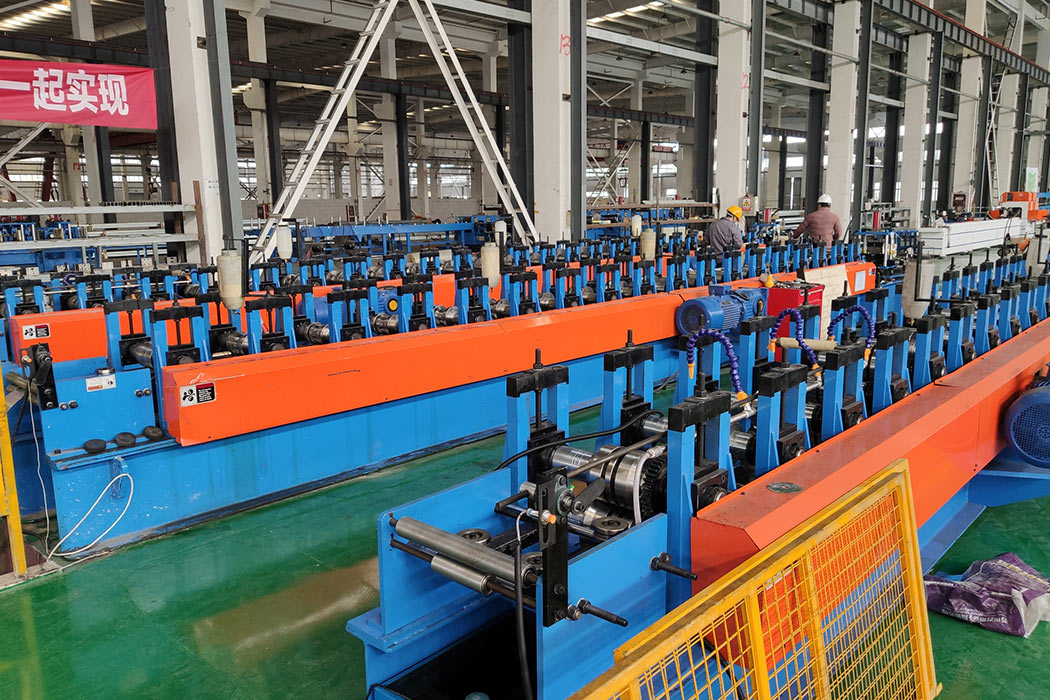

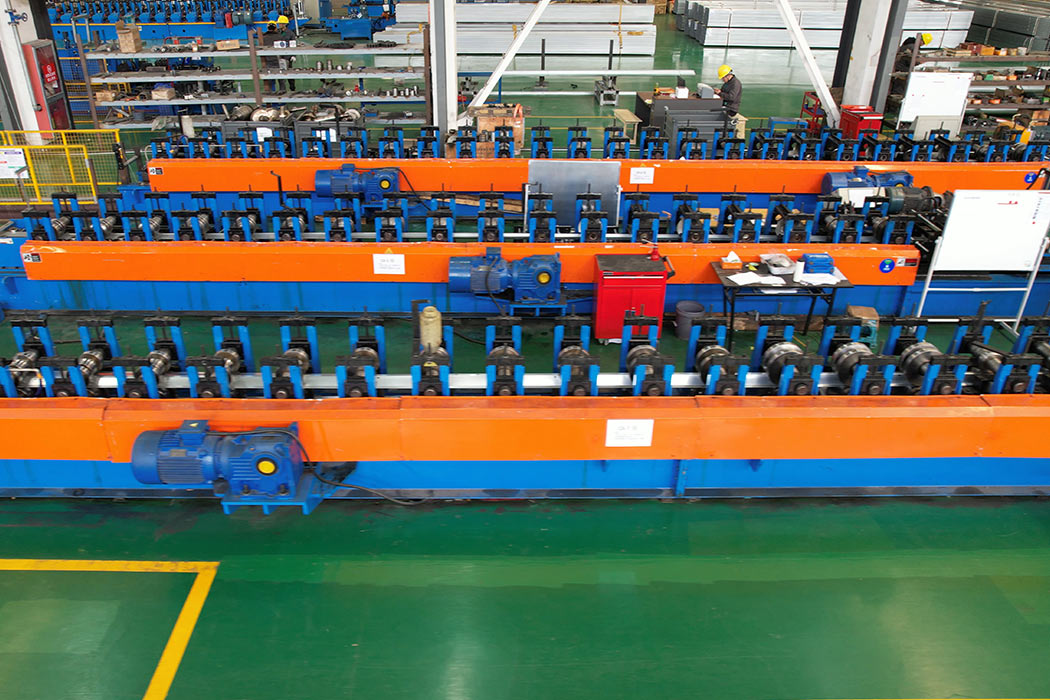

Equipment List

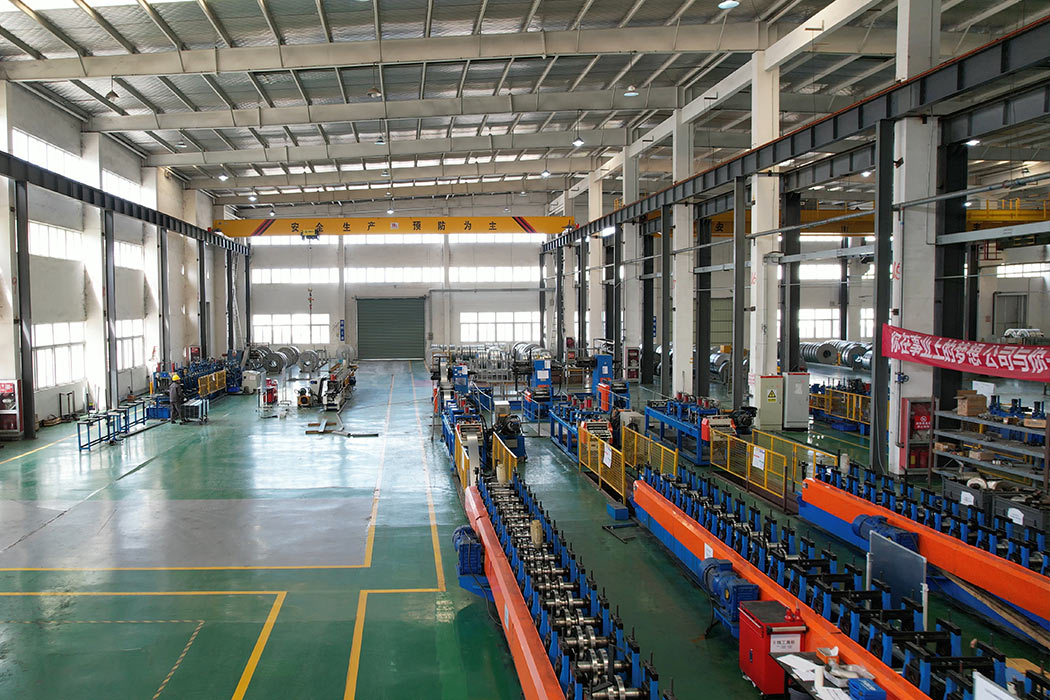

line no. thickness range(MM) section spec tolerance capacity serving field
Forming line  1# 1.0-3.0 3POS C/Z 80~300 (W80-300MM;F40-100MM;S10-25MM)  +/-3MM 15T/day steel structure/ farming
Forming line  2# 1.0-3.0 3POS C/Z 100~300 (W100-300MM;F40-80MM;S10-20MM）  +/-1MM 15T/day farming/PV
Forming line  3# 1.0-2.0 3POS C/Z 60~200 (W60-200MM;F30-60MM;S10-15MM）  +/-1MM 10T/day farming/PV
Forming line  4# 1.0-2.5 6POS C/Z specified +/-1MM 20T/day PV (LF)
Forming line  5# 0.8-1.5 as per drawing +/-0.5MM 30T/day PV (YH)
Forming line  6# 1.5-2.0 as per drawing +/-1MM 20T/day PV
Forming line  7# 1.5-2.0 as per drawing +/-0.5MM 30T/day PV
Forming line  8# 1.0-1.5 GC903 +/-0.5MM 15T/day YH
Forming line  9# 1.0-3.0 C50-C150
(W50-150MM;F30-60MM;S10-20MM)		 +/-1MM 50T/day PV domestic
Forming line 10# 1.0-3.0 C50-C150
(W50-150MM;F30-60MM;S10-20MM)		 +/-1MM 50T/day PV domestic

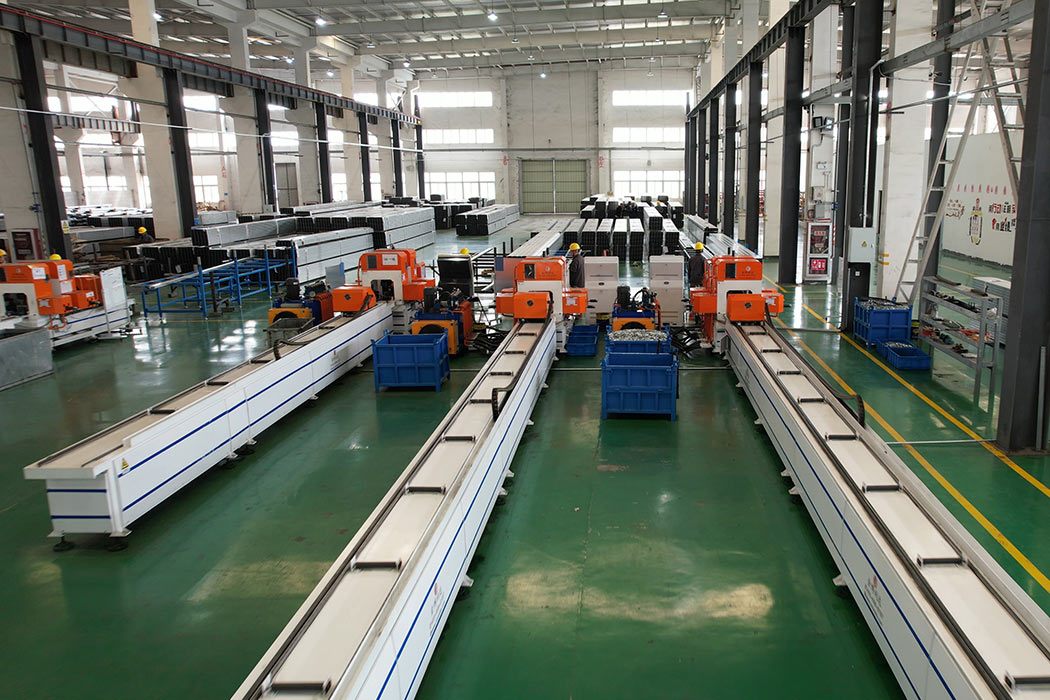

Punching line 1# 1.0-3.0
6position9M		 C40~C150
die matching required		 +/-1MM 25T/day PV
Punching line 2# 1.0-3.0
6position12M		 C40~C150
die matching required		 +/-1MM 25T/day PV
Punching line 3# 1.0-3.0
6position12M		 C40~C150
die matching required		 +/-1MM 25T/day PV
Punching line 4# 1.0-3.0
7position12M		 C40~C150
die matching required		 +/-1MM 25T/day PV
Punching line 5# 1.0-3.0
7position12M		 C40~C150
die matching required		 +/-1MM 25T/day PV

Quality Control

Control Plan

2024-07-04 22

Control plan.pdf

download
View More
Process Video
Inspection Video

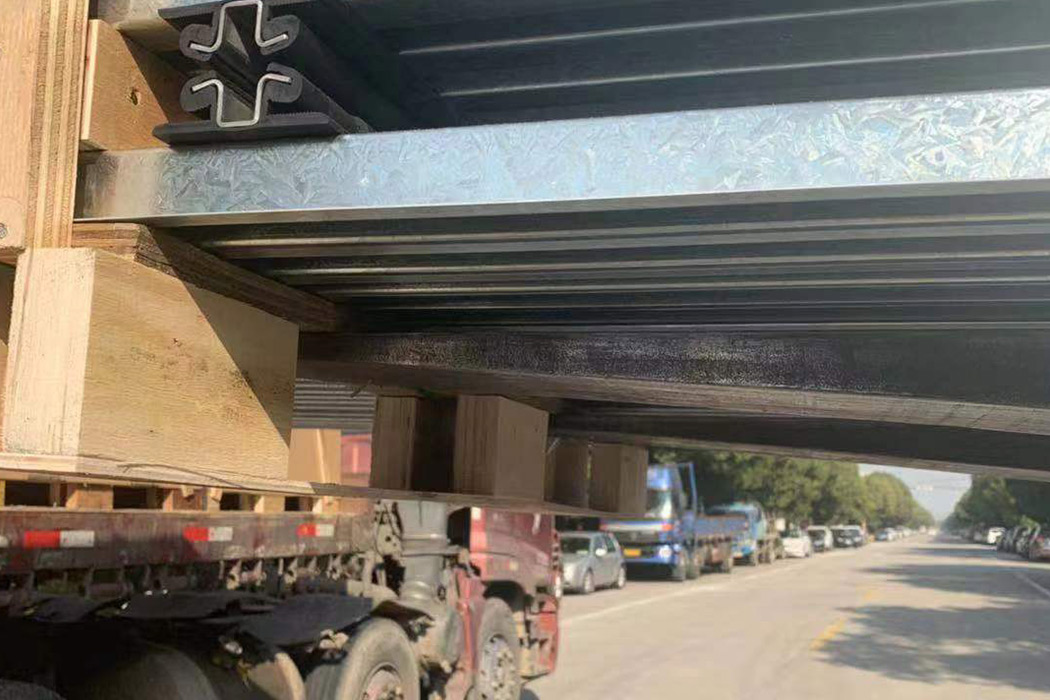

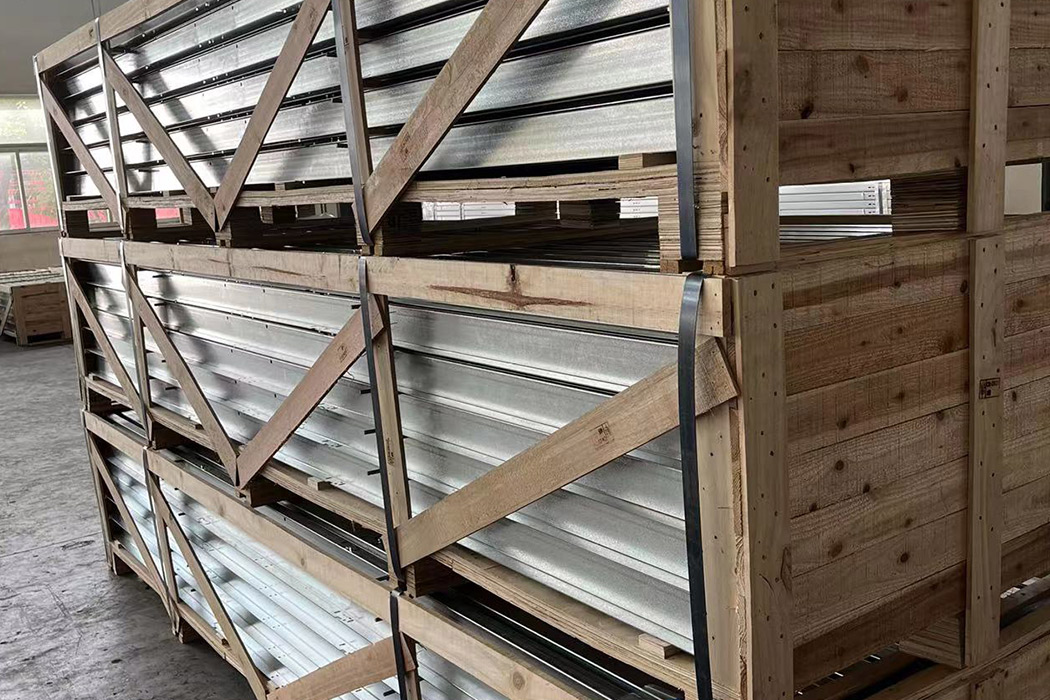

Export

Huiheng forming products have been exported to US,EU,Japan,Thailand,Taiwan,etc.

Client

certification_看图王
Honor

About Us

We are located in Suzhou Changshu Economic and Technological Development Zone near Shanghai. Our Group YIBAI sells 500,000tons GI/ZAM coated steel ...
