FEATURES
Reduces overall project cost due to weight optimization
Pre Punched Sections ensure faster project delivery
Zn-Al alloy coated steel ensures better corrosion resistance and longer life
High Strength Steel enables better load capacity and longer spans
Light Weight Sections enables ease in handling, transporting & Installation
SPECIFICATION

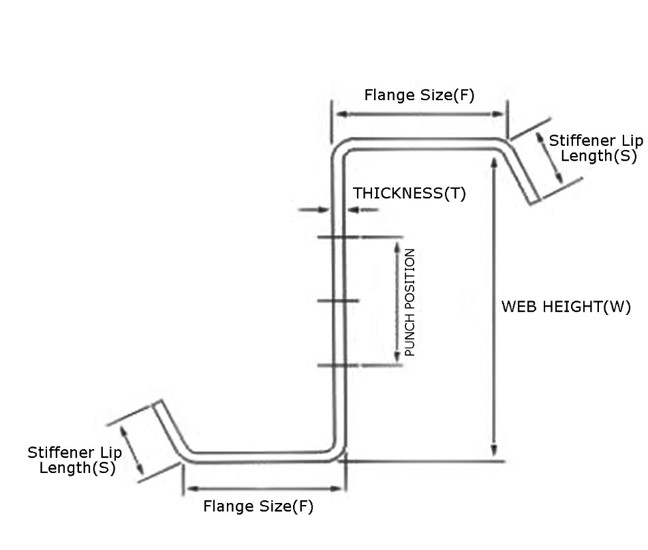

| PROFILE | GRADE | COATING | MATERIAL |
| Z70*40*10*1.0~2.0 | DX51D~G550 | Z80~600/ZAM80~ZAM600 | GI/ZAM |
| Z80*50*20*1.0~2.0 | |||
| Z110*80*20*1.0~3.0 | |||
| Z150*60*15*1.0~3.0 | |||
| Z177.8*63*21.8*1.5~3.0 | |||
| Z200*50*20*1.0~3.0 | |||
| Z300*80*20*1.5~3.0 |
* The profile can be customized according to customer's design and drawing.
|
|
 |  |
APPLICATION

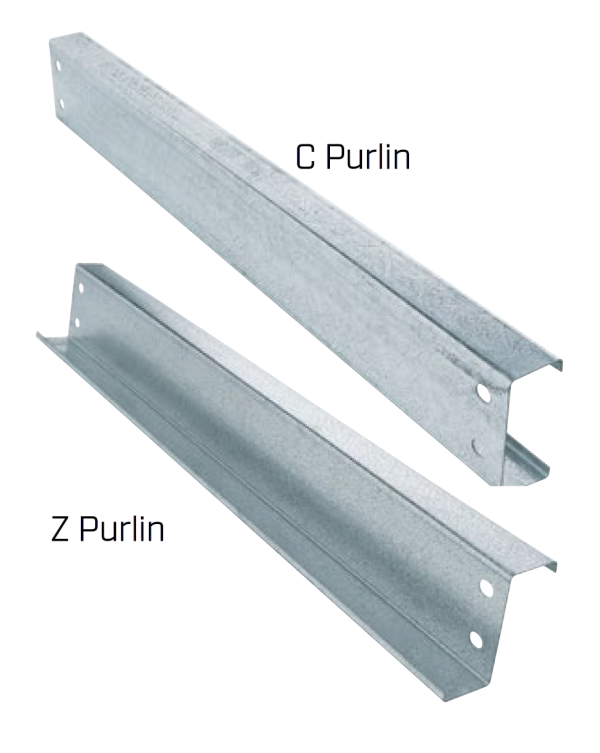

Z section steel are used as purlin, stringcourse and facade profile in heavy steel industrial buildings exposed to excessive loads and as load-bearing column, beam and roof truss in non-industrial steel constructions such as light gauge steel constructions, warehouses, hangars and barns.
