FEATURES
Reduces overall project cost due to weight optimization

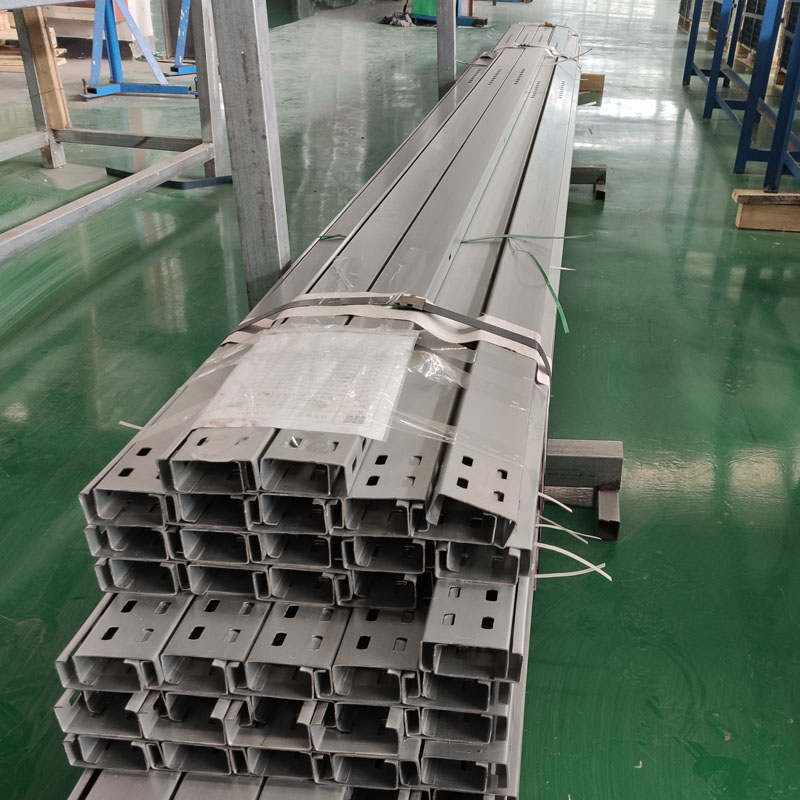

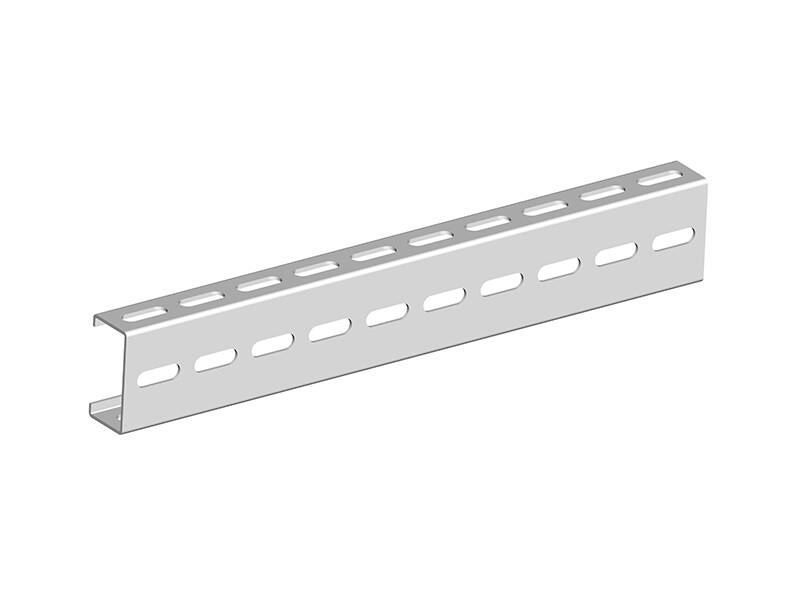

Pre Punched Sections ensure faster project delivery
Zn-Al alloy coated steel ensures better corrosion resistance and longer life
High Strength Steel enables better load capacity and longer spans
Light Weight Sections enables ease in handling, transporting & Installation
SPECIFICATION

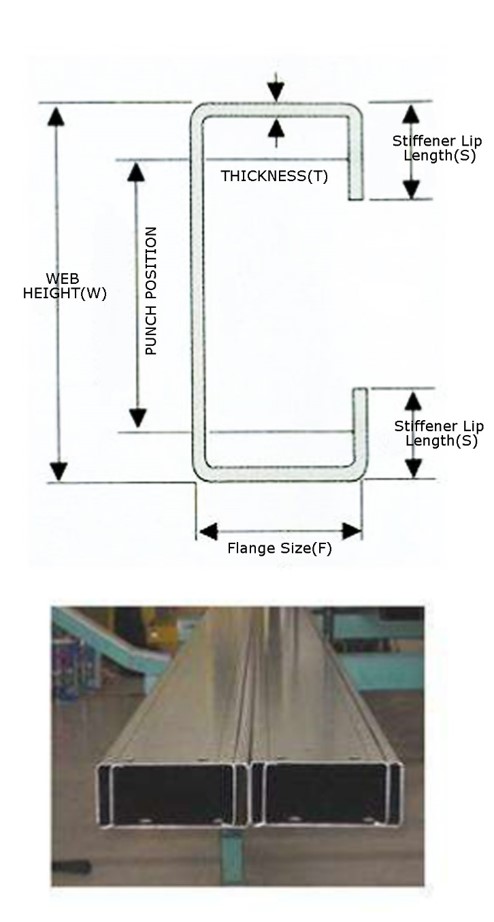

| PROFILE | GRADE | COATING | MATERIAL |
| C300*75*20*1.5~3.0 | DX51D~G550 | Z80~600/ZAM80~ZAM600 | GI/ZAM |
| C250*80*20*1.5~3.0 | |||
| C200*80*20*1.5~3.0 | |||
| C150*50*15*1.5~3.0 | |||
| C110*45*15*1.5~3.0 | |||
| C100*45*15*1.5~3.0 | |||
| C95*45*15*1.5~3.0 | |||
| C90*40*13*1.5~3.0 | |||
| C80*40*10*1.5~3.0 | |||
| C60*40*10*1.5~2.5 | |||
| C50*40*10*1.5~2.5 |
* The profile can be customized according to customer's design and drawing.
 |  |
 | |
 | |
APPLICATION

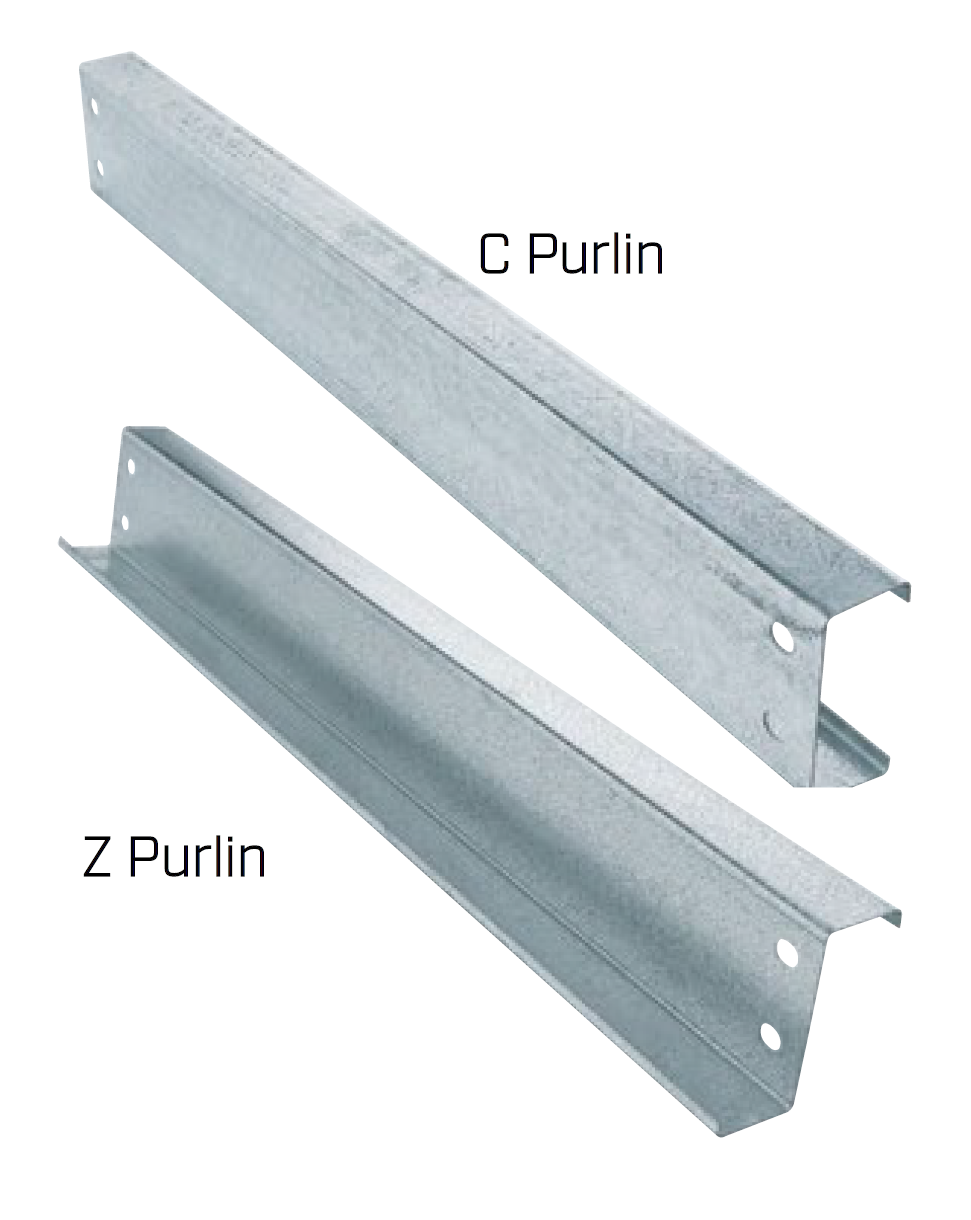

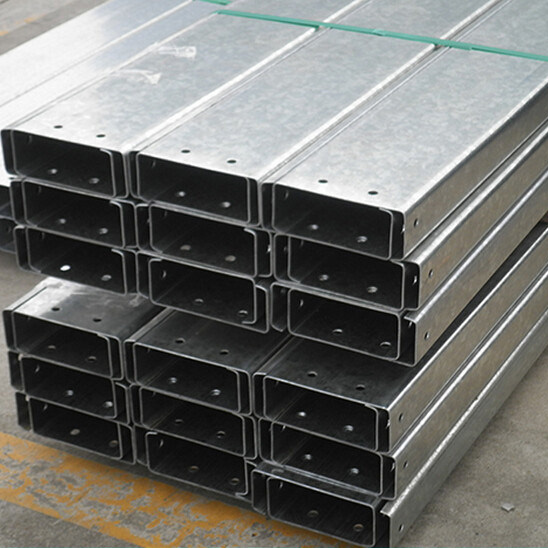

C Section Profile Steel is widely used for purlin and wall beam of steel structure and for pole, purlin and rafter of Solar Mounting Structure. C Section Profile Steel can also be used for pillar, beam and arm of machinery.
